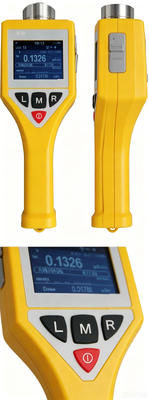

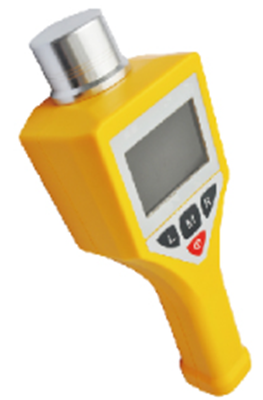

FJ-7105 Portable Neutron Radiation Detector Sound Light Vibration Alarm Cumulative Dose Radiation Tester
FJ-7105 is a kind of integrated digital multi-function radiant inspector. It can meet 10 range levels, measure three kinds of rays of X, gamma and neutron, and analyze the gamma ray spectrum. At the same time, water proof and dust proof can work in bad environment. It has a wide range of uses, such as environmental monitoring (nuclear safety), radiation health monitoring (disease control, nuclear medicine), homeland security monitoring (entry and exit, customs), public safety monitoring (Public Security), nuclear power station, laboratory and nuclear technology applications, as well as the use of waste metals in the recycling industry. Radioactivity detection.
Hardware configuration:
|
Multi component optional radiation detector
|
High strength ABS anti electromagnetic waterproof shell
|
|
2.4 inch 320*240TFT color LCD display
|
Multi layer digital analysis gold plating circuit
|
|
High speed dual core processor
|
4G large capacity memory card
|
|
USB connection PC data line
|
Color backlight processor
|
|
Data analysis CD-ROM (selection)
|
Large capacity lithium battery
|
|
High speed charger charger
|
High strength ABS waterproof packing box
|
Typical configuration technical parameters:
Type of neutron detector: 6LiI (Eu)
Dose rate range: 0.1 mu Sv.h~100.00mSv/h
Energy range: 0.025eV~14MeV
Slow body: GM
The dose rate range of the sub detector is 0.1 micron Sv/h~150mSv/h.
Cumulative dose range: 1nSv~999999mSv
Relative intrinsic error: less than 10%
Repeatability: less than or equal to 5%
Detection frequency: continuously adjustable from 1 seconds
Alarm threshold: continuously adjustable from 0.25 Sv/h
Alarm mode: sound, light, vibration
Battery time: 12 hours
Temperature range: -40 C ~+55 C
Humidity range: 0~95% non condensation
Charger: 5V~1A
Size: 235 x 95 x 77mm
Weight: 1200g
