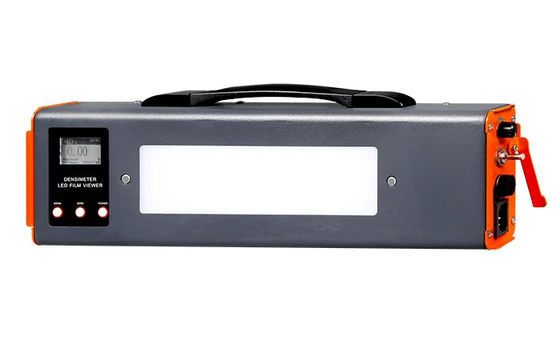

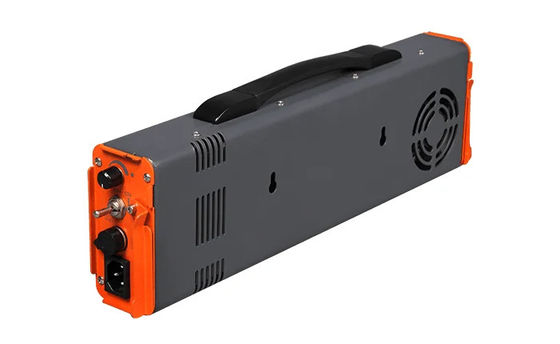

HFV-2206M All-in-one LED NDT Film Viewer with Built-in Densitometer 70000cd/㎡ 0~4.0D Radiographic Viewing Lamp

HFV-2206M All-in-one LED NDT Film Viewer with Built-in Densitometer 70000cd/㎡ 0~4.0D Radiographic Viewing Lamp

Features:

Maximum Light Intensity: > 70,000cd/㎡

Easily View < 4. 0 Density

Pure White LED Light

50,000 Hour Lamp Life

Low Power Consumption

Fan cooling

Foot Switch

Uniform Viewing Area: 98% Full Screen

Dimmer Control: 0% to 100% continuous

Surface temperature: <18°

Built-desktop stand

Design: Modern, Stylish and Simple

Power Requirements: 85-264VAC/47-60Hz

The power adapter: AC: 90-264VAC / 47-63Hz DC: 12V 5A

Safety Regulation and Electromagnetic Compatibility

Specifications:

Package Contents:

LED viewer with densitometer HFV-2260M 1pc

Foot switch 1pc

AC power cord 1pc

Viewing mask 1pc

Magnetic film holder 2pcs

Magnetic ruler 1pc

User's manual 1pc

Calibration certificate 1pc

Trouble Cause of the fault:

The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
