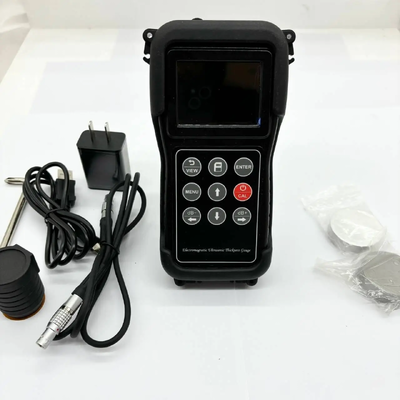

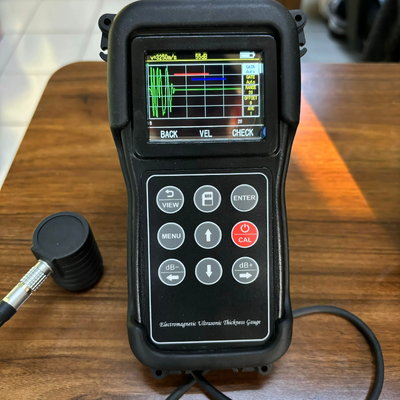

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

TG-14S electromagnetic ultrasonic thickness gauge is an ultra small, non-contact thickness measuring instrument without acoustic coupling agent. It can measure the thickness of metal or magnetic conductive materials.The instrument has the following features:

■ Easy to carry

■ The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement

■ It is insensitive to the coating and can realize the thickness measurement of coated workpieces or corroded metal pipe.

■ Without acoustic coupling agent, it can realize the thickness measurement of high-temperature workpiece

Technical Specifications

General characteristics:

a) The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required

b) Configurable probe types: normal temperature probe (≤80℃, short-term measurement), high temperature probe (≤800℃, short-term measurement)
