جزئیات محصول:
|
| Material: | ABS | Detector range: | 9V ——300µm; 67.5V—500µm;67.5V—500µm |
|---|---|---|---|
| دقت ولتاژ: | +5٪ | باتری: | باتری قابل شارژ Li-pol 11.1V/1100mA |
| برجسته: | High Quality Porosity Holiday Detector,Wet Sponge Coating Porosity Holiday Detector,Pinhole Porosity Holiday Detector,Wet Sponge Coating Porosity Holiday Detector,Pinhole Porosity Holiday Detector |
||

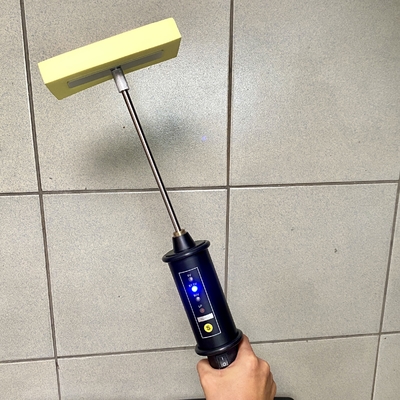

High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector
HD104 wet sponge pinhole leak detector meets the following standards: ASTM 3894.2, ASTM D-5162 A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 8289, ISO 8289 A, ISO 14654, NACE RP 0188.
Main technical performance
| Three voltages are available | 9V/ 67.5V /90V |
| Alarm | visible signal and audio alarm |
| Applicable test thickness | 9V -- 300 microns 67.5 V - 500 microns 90 V - 500 microns |
| Sensitivity | 9 V - 90 k Ω + 5% 67.5 V - 125 k Ω + 5% 90 V - 400 k Ω + 5% |
| Voltage accuracy | 5% |
| Battery | lithium polymer battery (Li-pol) 11.1V /1100mA |
| Power consumption | ≤ 0.5W |
| Size | 290×53×53mm |
| Weight | 500g |
| Voltage indication | three voltages are indicated by corresponding LED lights |
| Battery charging | specially equipped with 12VDC lithium battery constant voltage charger |
| sponge size | 170×70×30mm |
| Length of probe rod | 195mm |
| length of ground wire | 4m |

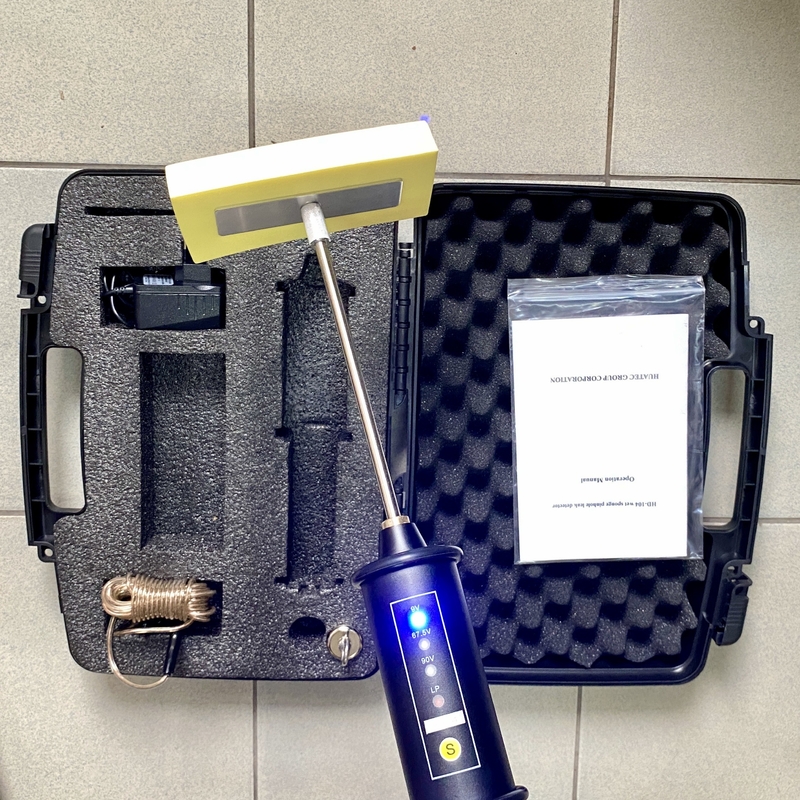

Standard delivery
HD-104 pinhole main unit 1pc
Standard wand and flat sponge 1pc
Earth wire 1pc
Charger 1pc
Carrying case 1pc
Manual 1pc
Warranty card 1pc
