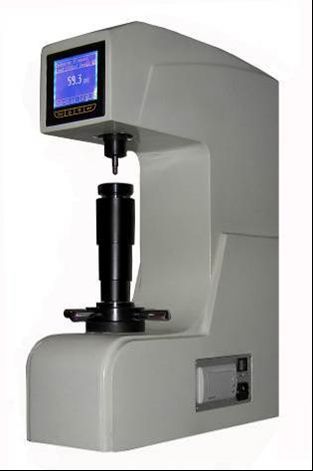

HR150P Automatic Metal and Plastic Rockwell Hardness Tester
l HR150P can be used directly to measure Rockwell hardness for metal and plastic material.
l Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
l Automatic test force switch according the selected scale without manual operation.
l Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
l Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
l The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
l Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
l The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.
|
Standard configuration
|
|
|
Host machine
|
1
|
|
|
Standard hardness block for A scale
|
1
|
|
|
Standard hardness block for B scale
|
1
|
|
|
Standard hardness block for C scale
|
1
|
|
|
ball indenter (1/16″)
|
1
|
|
|
120°cone diamond indenter
|
1
|
|
|
Mounting screws for indenter
|
2
|
|
|
Flat anvil
|
1
|
|
|
“V ”shape anvil
|
1
|
|
|
Power supply wire
|
1
|
|
|
Screwdriver for indenter mounting
|
1
|
|
|
Dust cover
|
1
|
|
|
Micro printer(inbuilt)
|
1
|
|
Optional accessories:
|
|
|
Short diamond indenter
|
|
|
Chisel diamond indenter
|
|
|
Slender diamond indenter
|
|
|
1/8″ball indenter and spare steel ball
|
|
|
1/4″ball indenter and spare steel ball
|
|
|
1/2″ball indenter and spare steel ball
|
|
|
φ225 anvil
|
|
|
φ150 anvil
|
|
|
Standard hardness block for other scales
|
· Preload:98.1N (10kgf)
· Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
· Scales:HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,
HRL,HRM,HRP, HRR,HRS,HRV
· Load dwell duration: 2s～50s, can be set and stored
· Resolution :0.1HR
· Display:High definition backlight LCD
· Operation:Menu selectable, Membrane keypad
· Upper/lower limits setting & alarming
· Data statistics: Avg., Max., Min., S, R available
· Curved surface correcting automatically
· Memory: Max 500 items of test results stored automatically
· Data output: USB port to external PC
· Printer:Model HR1500 with a RS-232 port to the external micro printer (Optional)
· Testing space:200mm in vertical, 165mm in horizontal
· Dimensions: 550mm×200mm×720mm
· Power supply: AC, 220V/110V, 50～60Hz, 4A
· Net weight: 100kg
