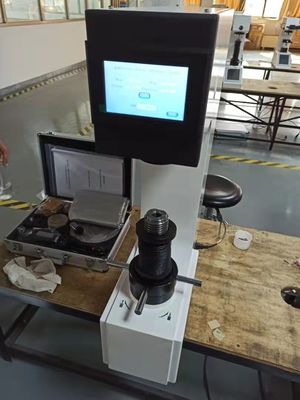

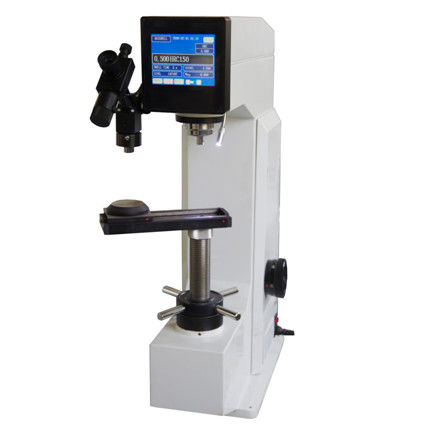

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester

Model

HB-3000DX

Brinell scale

HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000,  HBW10/1500,HBW10/3000

Test force(Kgf)

62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),

187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)

Carried standard

BSEN 6506, ISO 6506, ASTM E10, GB/T231

Test force accuracy

62.5～250kgf≤1%   500～3000kgf≤0.5%

Measuring device resolution

0.1um

Hardness value resolution

0.1HBW

Dwell time

0～99S

Data output

LCD display

Data storage

All data is stored in EXCEL format on U disk, or can choose built-in printer

Max. Height of specimen

200mm

Distance of indenter to outer wall

155mm

Dimension

550×210×800mm

Weight

110kg

Power supply

AC220+5%,50～60Hz

Item

Quantity

Item

Quantity

Eyepiece

1

Large, Medium, “V” shaped Testing Table

Each 1

Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter

Each 1

Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5)

Each 1

U disk,  touch pen

1

Dust bag

1

Power cable

1

Fuse 2A

2

Certificate, warranty card

1

Manual

1
