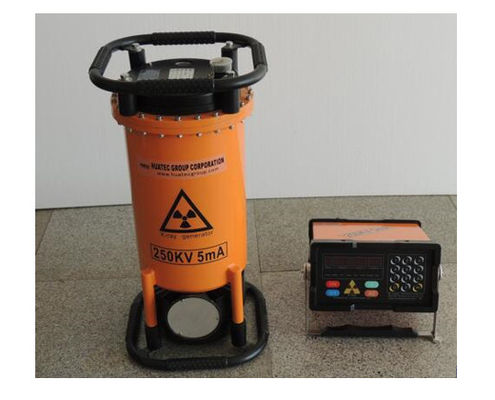

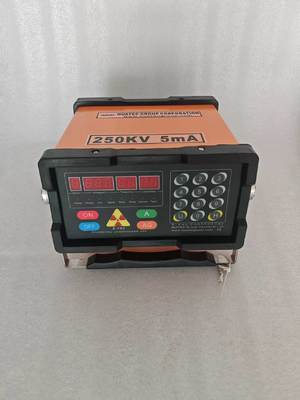

Portable Industrial X-ray Flaw Detector with Ceramic Tube 150-250KV Voltage
The XXG/XXQ series x-ray flaw detector produced by our company,HUATEC group corporation,which adopt variable-frequency and constant-frequency pulse techniques.The XXG/XXQ series controllers has novel structure,perfective performance and convenient to carry etc. characters.It based on microcomputer control system and modular structure,which makes integral machine obtain better stability and reliability. For the convenience of customers,the machine also offers the function of aging,which increase its service life . Our generator adopt gas insulation,forced air cooling and grounded anode,and has excellent properties of small volume and light weight.The products have been widely used for nondestructive testing in spaceflight industry,welding engineering industry,shipbuilding industry, boiler pipe industry,petrochemical engineering industry, aircraft manufacturing,maintenance industry,automotive industry, defence industrys,etc.
|
TYPE
ITEM
|
XXG2505
|
|
Max Penetration thickness Steel (A3)
|
40mm
|
|
Focal Distance
|
600mm
|
|
Exposure Time
|
5min
|
|
Film Type
|
TianJin Ⅲ
|
|
Double lead foil Intensifying screen
|
0.03
|
|
Darkroom Disposal
|
20±2℃
|
|
Development
|
5minutes
|
|
Blackness
|
1.5
|
|
Input
|
Voltage (V)
|
220V±10% 50―60Hz
|
|
Capacity (KVA)
|
2.5
|
|
Output
|
Tube voltage (KVP)
|
150-250
|
|
Tube current (mA)
|
5
|
|
Stability
|
±1%
|
|
X-RAY
Tube
|
Focus mm2
|
1.0×20.
|
|
Radiation Angle
|
40±5°
|
|
Sensitivity
|
k≤1.8%
|
|
Operation Mode
|
Intermittent operation, Radiating time to cooling time is 1:1
|
|
X-Ray
Controller
|
Dimension
|
350×290×160
|
|
Weight
|
11kg
|
|
Circuit Structure
|
Micro-computer control ,Modular structure,Voice prompt
|
|
X-RAY
Generator
|
Cooling
|
Force air cooling
|
|
Insulation
|
SF6 Gas Insulation
|
|
Working Pressure
|
0.35Mpa-0.45Mpa
|
|
Dimension
|
320×320×650
|
|
Weight (kg)
|
30.5kg
|
|
Working Temperature
|
-10℃―+40℃
|
Features:
◆Adopting micro-computer control and modular structure,with strong anti-interference ability and high automaticity and reliable performance .
◆Parameter setting,working process and trouble indication will be indicated on the LED screen.
◆Independent aging key is designed for aging the machine conveniently.
◆Radiating time to cooling time is 1:1.
◆The controller can recognize the type of x-ray generator automatically.
◆The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.
◆Ensure safety using the instrument,it is installed with overvoltage,undervoltage,
overcurrent,undercurrent and overtemperature protection device.
◆A unique safety lock is designed that protect the operator from the damage of radiation.
◆Adopting the wider range of kv value, and solve the difficulty problem of short radiographic range.
◆Exposure delay function ------the delay time can be set less than 10 minutes to keep the operator safe from working place.
◆Match with various generator and function reliably.
◆Number of exposure can be accumulated.
(After the unit has been ready,but before press the "ON"key,you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)
◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.
