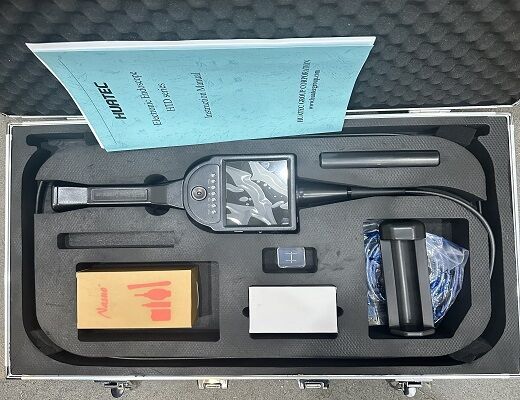

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm
HTD-D6 industrial endoscopes use electric keys to control the rotation of the speculum head in four directions, which is precise, flexible and labor-saving, and can realize the positioning of any point of the speculum head, so that your vision can follow your heart. The machine adopts an integrated design, easy to operate; all functions can be completed by one hand. High definition, sharp color, image without distortion, wide use environment, and can be taken pictures, videos and other ways to save the site of the original data, to provide a strong guarantee for inspection and maintenance. Widely used in automobile engine carbon testing, steel pipe, casting, container internal defect testing, aerospace, power, and industrial, police, civil and other fields.
| Technical parameter: |
| Name |
HTD-D6 Industrial electronic endoscope |
| optical system |
direction of observation |
Direct vision |
| Focal length |
fixed |
| Field angle |
≥70° |
| Depth of field |
10mm-∞/20-150 |
| Probe specification |
Probe diameter |
Φ6mm |
| Probe bending angle |
≥120° |
| Probe bending direction |
4 way |
| Working length |
1.5m (customizable) |
| Camera control |
electric,key control |
| image capture and display |
Screen brightness |
250cd/㎡ |
| Image acquisition resolution |
>720*625 |
| pixel |
450000 |
| display |
5” TFT true color |
| System specification |
Light source |
High light LED |
| Storage medium |
8G SD card |
| Storage |
JEPG,MPEG4 |
| power |
Built in rechargeable battery |
| Output interface |
USB2.0, AV OUT . |
| language |
English |
| In-depth tube |
material |
Stainless steel |
| Operating mode |
handheld portable control |
Product features:
1. Integrated handheld design, weighing about 0.88kg, easy to carry.
2. User-friendly design, simple and clear operating system.
3. The voyeuristic head is controlled in four directions by electric buttons, and any point can be positioned, and the micro-movement can be adjusted precisely, allowing you to observe as you wish.
4. Multi-layer stainless steel/tungsten wire mesh is adopted in the deep tube, which is more anti-corrosion and wear-resistant.
5. Adopt 5-inch hd display screen.
6. High brightness LED lighting, multi-level adjustable brightness.
7. Multi-functional image processing system, which integrates photo taking, video recording, browsing and return visit, and can be connected with the computer via USB.
8. 8GB memory, super-large capacity lithium battery, sustainable 3-4h, ultra-low power consumption.
9. Can be customized, upgraded infrared, wireless peeping head control.
