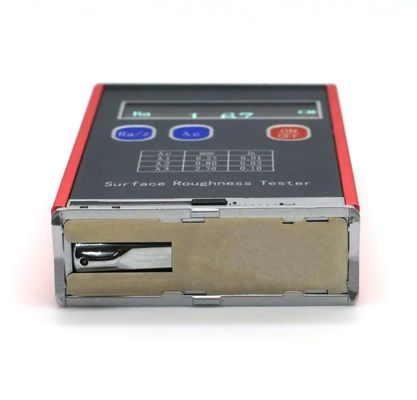

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

گواهی
چین HUATEC  GROUP  CORPORATION گواهینامه ها
چین HUATEC  GROUP  CORPORATION گواهینامه ها
نظرات مشتریان
طیف گسترده ای از محصولات NDT، ما می توانیم همه در گروه huatec دریافت کنید. ما ترجیح می دهیم از آنها خرید کنیم. رودلف شتنمن روسیه

—— رودلف شتینمن

من این سرویس، پاسخ سریع و کار حرفه ای را دوست دارم ترک ترکیه

—— آرت کایا

تستر سختی huatec، با کیفیت بسیار بالا، ما بسیار با تستر قابل حمل سخت RHL-50 راضی هستیم. کومارن گوندرند سوته افریقا

—— کومارن گاو نر

چت IM آنلاین در حال حاضر

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt
SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

تصویر بزرگ :  SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

جزئیات محصول:
محل منبع: چین
نام تجاری: HUATEC
گواهی: CE
شماره مدل: SRT-5000
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: US$575.00 - 650.00/set
جزئیات بسته بندی: بسته بندی کارتن بیرونی
زمان تحویل: 3-5 روز کاری پس از دریافت پرداخت شما
شرایط پرداخت: T/T، وسترن یونیون، پی پال
قابلیت ارائه: 10 ست در ماه

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

شرح
پارامترهای اندازه گیری (μm): Ra Rz Rq Rt طول ضربه (میلی متر): 6
طول نمونه برداری (mm): 0.25، 0.80، 2.50 محدوده اندازه گیری (μm): Ra:0.05 ~ 10.0 ؛ Rz: 0.1 ~ 50
خطای نشانه: ± 15٪ تنوع نشانه: <12%
فشار سر هدایت سنسور: ≤ 0.5N
برجسته کردن:

portable surface roughness tester,multi-parameter surface profilometer,Ra Rz Rq Rt tester

,

multi-parameter surface profilometer

,

Ra Rz Rq Rt tester

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt


Features:

Appearance using pull aluminum mould design, durable, anti-electromagnetism interference ability significant, accord with current design new trend.
By using high-speed DSP processors for the data processing and calculation, measuring and calculation speed is greatly improved.
Liquid crystal adopts popular OLED display, high brightness, no perspective, wide temperature.It is suitable for various applications.
Using lithium ion rechargeable batteries, it can work long hours with no memory effect.It also can work with charging .Charging time is short, while the battery life is long.
Use the common USB interface to charge and communication .Use special charger or the computer USB port of chargeIt’s convenient and quick.
Dot matrix LCD display, interface message is rich.
Real-time monitoring of lithium battery power and display, electric charge and timely remind users.
Automatic shutdown function, low power consumption and hardware design make instrument working hours exceeds. It is suitable for all kinds of field use.
The sensors head has the protect door, which protect the head of the sensors effectively. Guarantee the accuracy of measurement.


SPECIFICATIONS:

Measurement Parameters(µm) Ra Rz Rq Rt
Stroke Length(mm) 6
Sampling Length(mm) 0.25 , 0.80 , 2.50
Evaluation Length(mm) 1.25 , 4.0 ,
Measurement Range(µm ) Ra: 0.05 ~ 10.0
Rz: 0.1 ~ 50
Error of Indication ±15%
Varation of Indication <12%
Tip arc radius 10 µm±1 µm
Angle:90
Touch needle static force measurement ≤ 0.016N

Force measurement rate

≤ 800N/m
Sensor guide head pressure ≤ 0.5N
Battery 3.7V Lithium Ion battery
Contour Dimension 106 mm×70 mm×24 mm
Weight 200g

Temperature

-20℃~40℃
Relative Humidity < 90%
Surrounding no vibration and no corrosive medium.

Standard Accessories:
Main unit…………… . ..1pc.
Carrying case………… 1 pc.
Operation manual…….1 pc.
Standard sample plate
1 pc
Product certificate
….  1 pc
