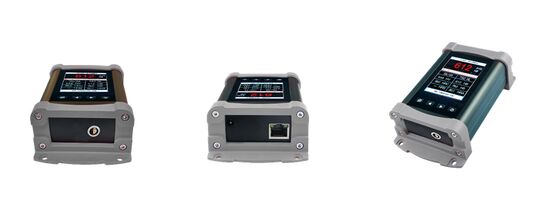

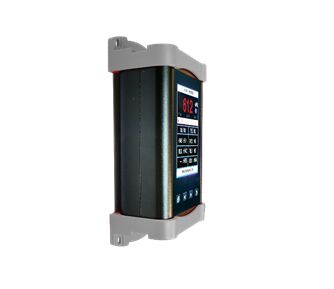

RHL-AI1600 Online Leeb Hardness Tester

RHL-AI1600 Online Leeb Hardness Tester

The RHL-AI1600 online portable Leeb hardness tester features a 2.8- inch, 320x240 color TFT screen with delicate colors and rich display content. It is online powered and incorporates electromagnetic interference and surge protection designs, providing strong immunity. It also has an Ethernet port or RS485 communication interface, allowing connection to a PC or PLC controller for real-time data transmission.

• Hardness scale: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and Shore (HS).
• Measurement range: HLD (170～960), HRA (59～85), HRB (13～100), HRC (18～68), HB (19～655), HV (80～976), HS (32～100)
• Measurement directions: 360° (vertically downward, diagonally downward, horizontal, diagonally upward, vertically upward).
• Measuring materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloys, copper-zinc alloys (brass), copper-tin alloys (bronze), pure copper, and forged steel.
• Displays: 2.8- inch TFT LCD screen with dimensions of 320 × 240 .
• Power supply: 24V
• Ambient temperature 0～40℃
• Storage temperature -25～70℃

• Standard configuration:
• 1pc main unit
• 1pc D type impact device
• 1pc small support ring
• 1pc Nylon brush (I)
• 1pc high-value Leeb hardness block
• 2pcs terminals
• 1pc Operation manual
• 1pc HUATEC calibration certificate

• Optional accessories:
• Various irregular impact devices
• Various irregular support rings
• Various hardness blocks
