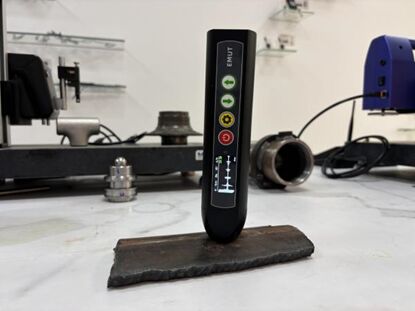

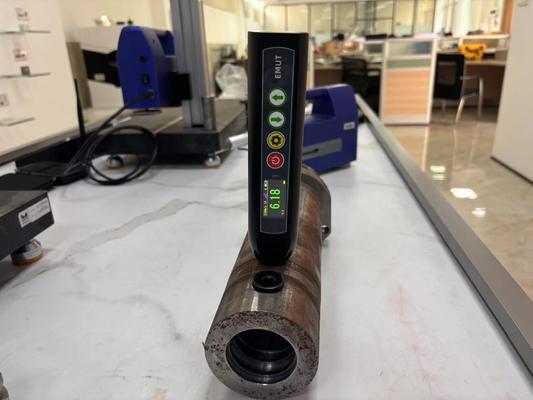

TG-140EX Explosion-Proof A-Scan Electromagnetic Ultrasonic Thickness Gauge

Sampling rate

80MSPS

Bandwidth

2.5MHz～6MHz

Launch

±600V_400Hz_125ns

Gain

Automatic 0～96dB,pace 1dB

Measurement accuracy

±0.01mm

Sound velocity range

400～9999 m/s

Effective range

1.0～640 mm

Average level

L,M,H three-level adjustable

Lifting distance

5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel)

Measurement range

Measure carbon steel — 1X:160mm 2X:320mm 3X:640mm

Measurement type

Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement channel

Thin parts, common, bars

Measurement mode

Single echo(I-E), Dual echo(E-E)

Search mode

Frontier-Frontier mode, Wave crest-Wave crest mode,

Wave crest-Frontier mode

Auxiliary functions

Auto freeze, Auto gain, Auto sleep, A-Scan waveform display

Revised function

Gate height adjustment, delayed fade adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation

Communication Interface

RS-485 or USB2.0

Charger

5V2A, Standard Type-C interface

Display screen

1.47 inch 320× 172 IPS_LCD

Dimension

178.4 mm× 42 mm× 32 mm

Battery life

3.7V 3400mAh Lithium battery, 6 hours of battery life

Bare weight

A Metal shell: 358g  B Injection molded shell: 255g

C Injection molded + quick release: 289g
